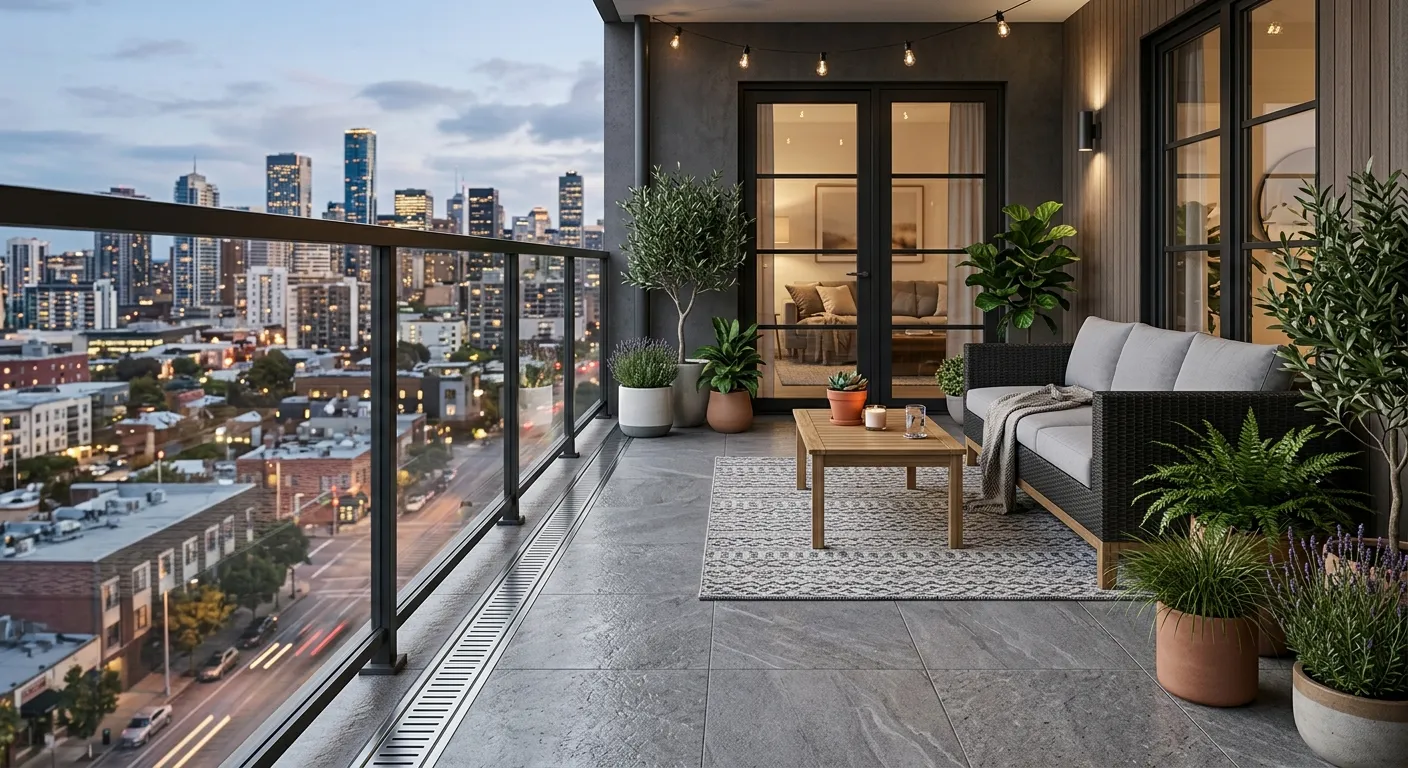

Balcony & Terrace Drainage Solutions

Weather-resistant drainage solutions for balconies, terraces, and outdoor areas. Maintain structural integrity while ensuring effective water management in all weather conditions.

Get Solution Recommendations

Key Challenges

Managing heavy rainfall and preventing water ingress
Resisting UV degradation and temperature cycling
Preventing freeze damage in cold climates
Coordinating drain placement with architectural design
Ensuring proper slope on thin balcony floor assemblies

Benefits

316 stainless steel for maximum weather and corrosion resistance
High-flow capacity handles heavy rainfall events
Freeze-resistant design for cold climate applications
Leaf and debris catchers reduce maintenance
Waterless trap options prevent freeze-related odor seal failure

Solution Overview

Balcony and terrace drainage is critical for protecting building structural integrity, preventing water ingress, and maintaining the usability of outdoor living spaces. Poor balcony drainage leads to water pooling a slip hazard and structural load, water penetration through the floor slab causing ceiling damage to floors below, freeze damage in cold climates, and corrosion of balcony structural elements. Our balcony and terrace drainage solutions address these challenges with products designed specifically for outdoor exposure conditions.

Balcony Drainage Engineering Principles: Effective balcony and terrace drainage requires a systematic approach that addresses water management at multiple levels: 1 Water collection — the drain must efficiently collect water from the entire balcony/terrace surface, requiring proper drain placement at the lowest point and adequate slope from all directions; 2 Water conveyance — the drain must handle the expected rainfall volume, including extreme weather events, requiring appropriate flow capacity and outlet sizing; 3 Water discharge — the drain must direct water to the appropriate drainage system stormwater plumbing or exterior discharge per local building codes; 4 Seal integrity — the drain must maintain its odor seal or use a waterless alternative despite exposure to temperature extremes, UV radiation, and atmospheric conditions.

Material Selection for Outdoor Exposure: Balcony and terrace drains are exposed to environmental conditions that indoor drains never face: 1 UV radiation — degrades plastic drains over time, causing brittleness and cracking; stainless steel is UV-resistant and maintains its integrity indefinitely; 2 Temperature cycling — outdoor temperatures can range from -20°C to +60°C, creating significant thermal expansion and contraction; stainless steel handles this range without deformation; 3 Rainfall and humidity — constant exposure to moisture requires corrosion-resistant materials; 304 stainless steel is adequate for most environments, while 316 grade is essential for coastal locations; 4 Atmospheric pollution — urban environments expose outdoor drains to sulfur dioxide, nitrogen oxides, and other pollutants that can accelerate corrosion; 304/316 stainless steel provides excellent resistance to atmospheric corrosion.

Freeze Protection in Cold Climates: In cold climates, balcony drains face the challenge of freeze damage. Water trapped in the drain's water seal can freeze during winter, potentially causing: 1 Compromised odor seal — frozen water allows sewer gases to enter; 2 Structural damage — expanding ice can crack plastic drain bodies not stainless steel; 3 Flow restriction — ice buildup reduces the drain's flow capacity. Our recommended solution for cold climate balconies is the waterless trap insert, which contains no water to freeze and maintains its seal regardless of temperature. For balconies in temperate climates, the standard 50mm water seal is sufficient.

Waterproofing Integration: The most critical aspect of balcony drainage is proper integration with the waterproofing system. Water ingress through the balcony floor slab is one of the most common and costly building defects worldwide. Key waterproofing details: 1 The waterproofing membrane must extend up the walls by at least 150mm preferably 200mm; 2 The membrane must overlap the drain flange by at least 50mm and be sealed with compatible sealant; 3 The membrane must be protected by the floor finish tiles, pavers, screed from UV degradation and physical damage; 4 A 24-hour water test should be performed before installing the floor finish to verify waterproofing integrity.

Installation Notes

Balcony & Terrace Drainage Installation Best Practices:

Drain Placement: Position the drain at the lowest point of the balcony/terrace. For standard balconies up to 25 sqm, a single drain is typically sufficient. For larger terraces, calculate the number of drains needed based on rainfall intensity and available slope 1 drain per 15-25 sqm in temperate climates, 1 drain per 10-15 sqm in tropical climates.

Slope Creation: Create floor slope at 1:80 to 1:50 away from the building facade toward the drain. This slope directs water away from the building, preventing water ingress through wall-floor junctions. Use a laser level to verify slope during construction.

Waterproofing Detail: Apply waterproofing membrane over the entire balcony/terrace surface. The membrane must overlap the drain flange by 50mm+ and be sealed with compatible sealant. Perform a 24-hour water test before installing the floor finish.

Sourcing Balcony Drains for a Project?

Get material recommendations, flow calculations, and freeze-protection solutions for your balcony and terrace drainage.

Request Quote

Case Study

A luxury condominium development in Vancouver, Canada specified our 316 stainless steel balcony drains with waterless trap inserts for 150+ units. The waterless traps eliminated freeze-related odor issues during winter, and the 316 grade construction provided long-term corrosion resistance in the coastal marine environment.

Frequently Asked Questions

How many drains does a balcony or terrace need?

The number of drains depends on the balcony/terrace area, local rainfall intensity, and architectural constraints. As a general rule, one drain can effectively serve approximately 15-25 square meters with proper slope. Larger terraces may require multiple drains positioned at low points. In regions with heavy rainfall (tropical climates), more drains may be needed. Consult local building codes for specific requirements.

Should balcony drains have water seals or waterless traps?

For balconies in cold climates, waterless trap inserts are recommended because traditional water seals can freeze, allowing sewer gases (if connected to a waste line) or insects to enter. In warm climates, a simple water seal or even an untrapped drain (if discharging to atmosphere) may be sufficient. Check local plumbing codes for balcony drain requirements in your market.

What slope is required for balcony drainage?

Building codes typically require a minimum slope of 1:80 (1.25%) to 1:50 (2%) from the building facade toward the drain. The drain should be positioned at the lowest point. For large terraces, multiple drains with defined drainage zones ensure effective water management. Waterproofing should extend up the wall (minimum 150mm) and be properly detailed at the drain penetration.

Can balcony drains discharge directly to the exterior or must they connect to plumbing?

This depends on local building codes. In many jurisdictions, balcony drains can discharge to the exterior (open drainage) if the volume is manageable and the discharge point is properly detailed. In multi-story buildings, balcony drains are often connected to the building's stormwater plumbing system. Our drains work with both configurations - the key is proper trap selection based on whether the drain connects to a pressurized waste system.
