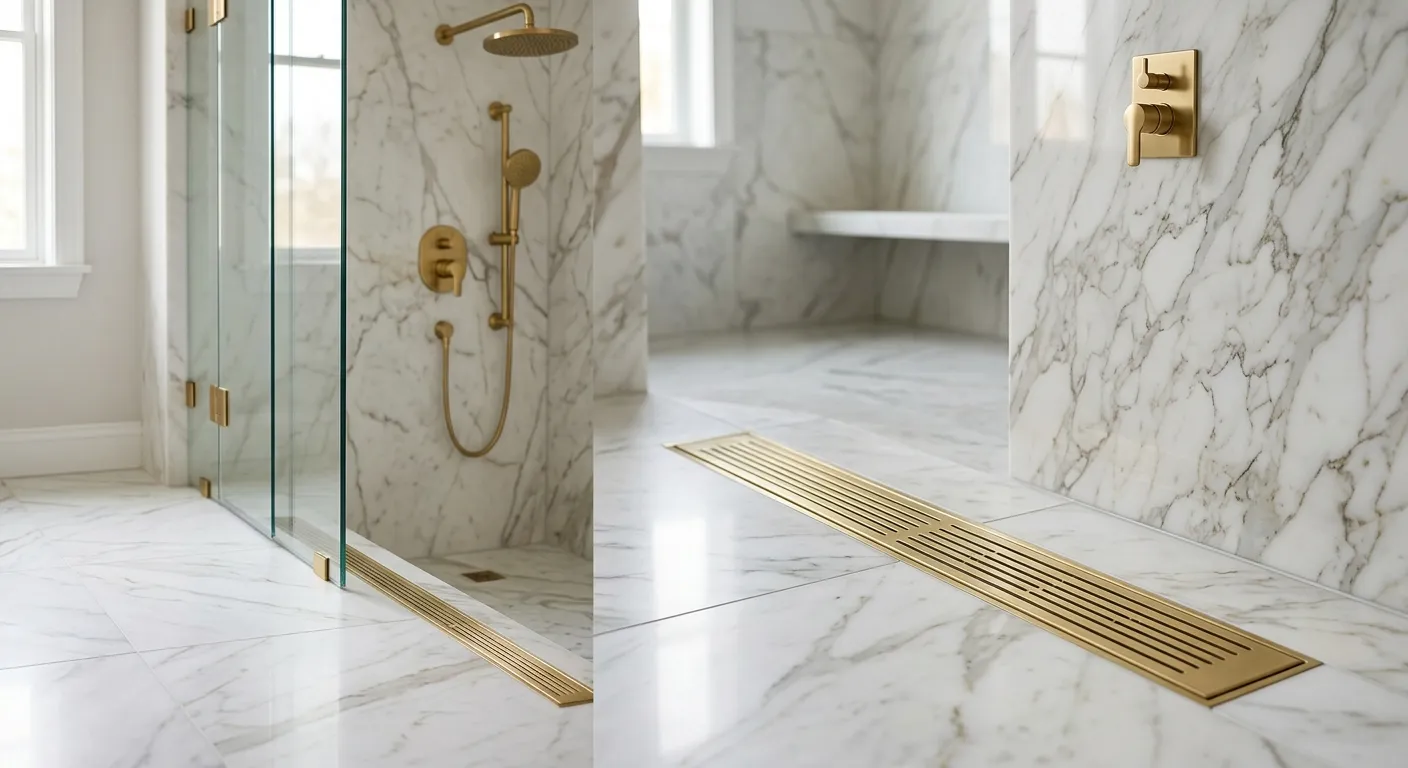

Architect Series Linear Shower Drains

The Architect Series features heavier-duty construction (2.0-3.0mm steel vs 1.2-1.5mm), premium finishes including PVD coatings, a wider range of customization options (custom lengths, outlet configurations, tile-in grates), and higher flow rates (40-60 L/min vs 30-40 L/min). The Architect Series is designed for luxury projects where aesthetics and performance are critical, while the Residential Series provides reliable performance at a more accessible price point for standard home bathrooms.

Yes, the Architect Series is specifically designed for barrier-free and curbless shower applications. The low-profile design with adjustable mounting feet (15-150mm range) allows for seamless floor integration at floor level, meeting accessibility requirements under ADA, Part M, and similar accessibility codes worldwide. The drain should be positioned along the wall opposite the shower entry, with the floor sloped at 1:80 to 1:50 toward the drain. For ultra-thin floor constructions, we offer a low-profile variant with reduced body depth of 65mm.

Flow rates range from 40-60 L/min depending on the trap configuration and outlet size selected. The 50mm vertical outlet configuration typically achieves 40-45 L/min, which is sufficient for standard single shower head installations (8-12 L/min flow rate). The 63mm horizontal or vertical outlet configuration achieves 55-60 L/min, making it suitable for luxury shower systems with multiple shower heads, rain panels, or body jets that can produce combined flow rates of 20-30 L/min. We provide flow test reports in both L/min and GPM formats for specification submissions.

Yes, we offer comprehensive OEM services for the Architect Series. This includes: (1) Custom laser engraving of your brand logo on the drain body and grate — no tooling charges for orders of 50+ units; (2) Custom packaging design with your branding, product information, and installation instructions — available in multiple languages; (3) Custom product documentation including datasheets, specification sheets, and care/maintenance guides bearing your brand; (4) Exclusive grate designs developed specifically for your brand (MOQ 200+ units, with tooling amortization over the order). Contact our OEM team for detailed pricing and lead time information.

Standard Architect Series configurations (stock lengths of 600-1200mm in brushed 304/316 stainless steel) have a minimum order quantity of 10 units with a lead time of 1-2 weeks. Custom configurations (special lengths, PVD finishes, OEM branding) have a minimum order of 50 units per finish/length combination, with a lead time of 3-4 weeks. For large project orders (200+ units), we recommend placing orders 6-8 weeks in advance to ensure production capacity allocation. Rush orders can typically be accommodated within 2 weeks for a small surcharge.

To specify the correct drain, you need to determine: (1) Shower dimensions and type (curbless, standard, corner) to select drain length and position; (2) Floor construction depth to determine frame height requirement; (3) Plumbing outlet configuration (vertical/horizontal, 50mm/63mm) based on the building plumbing design; (4) Material grade (304 for standard indoor, 316 for coastal or high-humidity environments); (5) Finish preference (brushed, polished, PVD-coated, or tile-in); (6) Applicable standards (EN 1253 for Europe, ASME A112.6.3 for North America). Our technical team can assist with specification development and provide pre-written specification sections in MasterFormat or CSI format.

Yes, the Architect Series can be used in outdoor shower applications when specified with 316 stainless steel construction. The 316 grade provides superior resistance to UV degradation, temperature variations, and atmospheric corrosion that are common in outdoor environments. For coastal outdoor installations, 316 stainless steel is essential. Avoid PVD-coated finishes for outdoor applications as prolonged UV exposure may affect the coating over time. Brushed or polished 316 stainless steel finishes are recommended for outdoor use.
