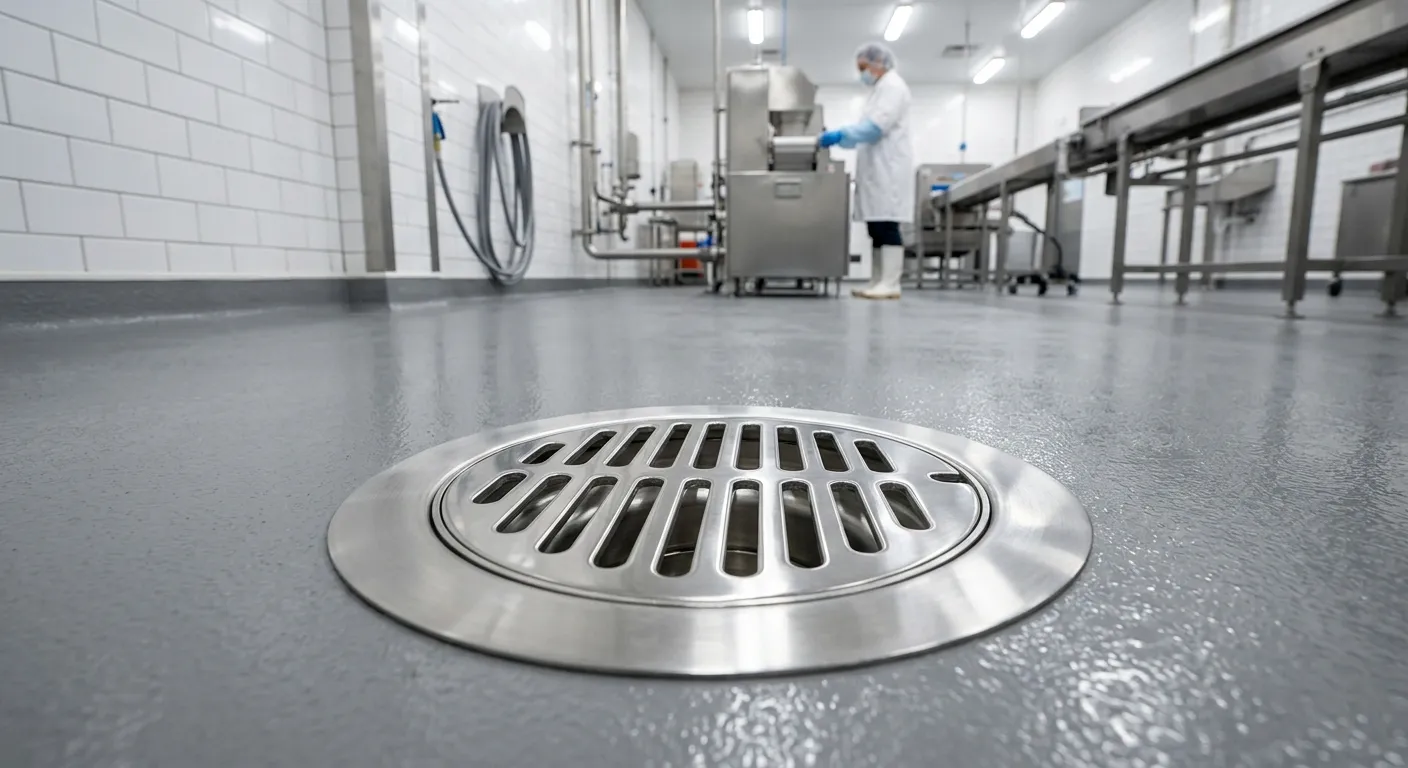

Food Processing Hygienic Drains

Hygienic drains for food processing must meet several critical design criteria: (1) **Smooth internal surfaces** — Ra ≤ 0.8μm surface finish prevents bacterial adhesion and biofilm formation; (2) **No dead zones** — radiused corners (minimum 3mm radius) and continuous slopes eliminate crevices where bacteria could harbor; (3) **Complete drainage** — pre-sloped channels ensure zero standing water after washdown; (4) **Welded construction** — fully welded internal seams with no mechanical fasteners in the flow path; (5) **Easy-clean design** — all components removable without tools for CIP cleaning and manual inspection; (6) **Chemical resistance** — 316 stainless steel withstands caustic cleaners, acidic descalers, and sanitizers used in food processing. Our hygienic drains are designed to support your HACCP food safety management system and pass sanitary design audits.

Yes, our food processing hygienic drains are specifically designed to withstand frequent hot water washdown at temperatures up to 120°C. The 316 stainless steel construction handles thermal shock (rapid temperature changes from hot washdown to cold rinse) without deformation, cracking, or seal failure. In our testing, the drains have endured 1,000+ thermal cycles from 120°C to 10°C without any performance degradation. During installation, ensure appropriate expansion joints are incorporated into the surrounding floor construction to accommodate thermal movement between the drain body and the floor slab.

Yes, we provide comprehensive CAD and BIM documentation for our food processing drain products. This includes: (1) Dimensional drawings (DWG, PDF) for each drain model and configuration; (2) Flow capacity charts showing L/min performance at various head pressures; (3) Installation detail drawings showing proper floor slope, waterproofing, and concrete specifications; (4) BIM models (RVT, IFC) for integration into Revit or other BIM platforms; (5) Pre-written specification sections in MasterFormat (Division 22 42 00) for inclusion in project documents. Contact our technical team with your specific requirements and we will provide the appropriate documentation package.

Standard food processing drain configurations (150-200mm width, standard lengths) ship within 2-3 weeks. Custom lengths, specialized configurations (multiple inlets, specific outlet orientations), and OEM orders typically require 3-5 weeks depending on order volume. For large project orders (20+ sections or complete facility drainage), we recommend placing orders 6-8 weeks in advance to ensure production capacity allocation. We provide detailed production scheduling with milestone tracking, and our project management team coordinates directly with your general contractor to ensure on-time delivery aligned with your construction schedule.

Daily cleaning: (1) Remove sediment basket and dispose of captured debris; (2) Rinse channel with hot water (80°C+); (3) Apply caustic cleaning solution and scrub channel interior with stiff-bristle brush; (4) Rinse thoroughly with hot water; (5) Apply sanitizer and allow to air dry; (6) Replace sediment basket. Weekly deep cleaning: Repeat daily cleaning, then disassemble trap insert and clean all components. Inspect internal surfaces for any signs of damage or corrosion. Monthly inspection: Verify weld integrity, surface finish condition, and component fit. All cleaning activities should be documented as part of your facility's sanitation standard operating procedures (SSOPs).

Yes, our hygienic drains are suitable for pharmaceutical cleanroom environments where sanitary drainage is required. The smooth internal surfaces (Ra ≤ 0.8μm), welded construction, and chemical-resistant 316 stainless steel meet the sanitary design requirements for cleanroom drainage. For ISO Class 5+ cleanrooms, we recommend the flush-mounted grate configuration with no protruding edges, and the mechanical odor trap option to prevent any potential contamination from sewer gases. Contact our technical team for cleanroom-specific configuration recommendations and documentation.
